Product Description

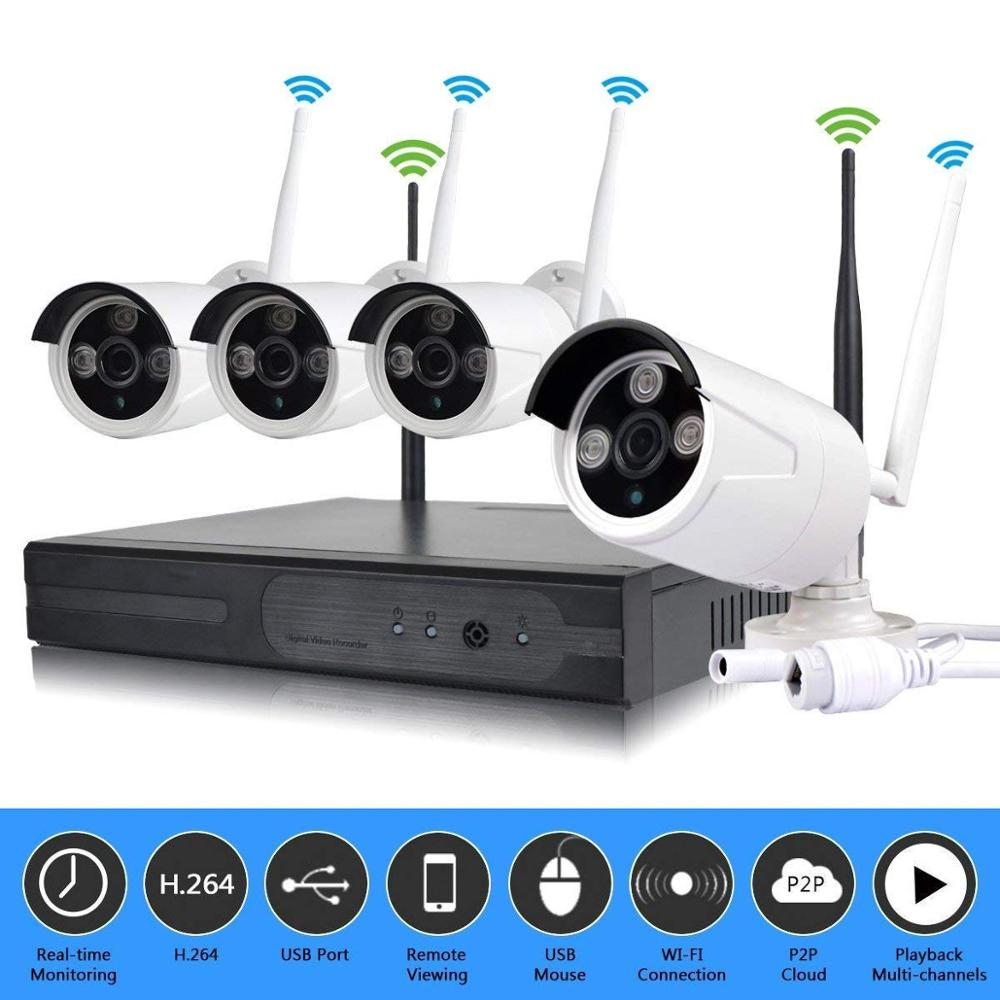

4ch 1.3MP WiFi kit AP-699HCE-XMW(D-4)"
4CH 960P WiFi NVR
WiFi 720P/960P/1080P CAM
60 duckbilled housing
3pcs X 20 Lamp beads
Infrared distance: 20~30 m
HD lens 3.6MM
IR cut filter with auto switch
Package details:
*4CH 720P WiFi NVR (not HDD) X 1
* WiFi 720P Cameras X 4
* 1m Network line X1
* DC 12V 2A Power adapter X1
* DC 12V 1A Power adapter X4
* USB Mouse X 1
* User Manual X1
* Screw bag X4
Weight and box size:
1pcs: 355*298*275 ; 5.3KG
2pcs/CTN:370*310*570; 11.4KG"
Why Choose Us?
1. HongAnKe is a factory with own engineer team and production lines.
2. 10 years experience is the security fields.
3. 100% test of products.
4. OEM / ODM acceptable
5. Honest and Quality is our faith.
Technical Parameters
| IP Camera Specification |
| Sensor | 1/4 CMOS |
| Resolution | 720P |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux |
| Shutter | 1/25s to 1/25,000s |
| Lens | 4mm |
| OSD | Date Time & Title |
| White Balance | Auto |
| Day & Night | Auto / Color / BW |
| 3D-DNR | Auto |
| Mirror/Flip | On / Off |
| Frame Specification | H.264 1280x720@30fps or below |
| H.264 640x480@30fps or below |
| S/N | > 39.1 Db |
| Interface | RJ45 |
| Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10 °C to +50°C / 30% to 80% RH |
| Working Temperature/Humidity | -20°Cto +60°C / 20% to 90% RH |
| Power Input | DC12V-1A |
| Power consumption | ≤6W |
| Size | 95 (L)×55(W)×45 (H)mm |
| Protection Level | IP66 |
| NVR Specification |
| IP Video Input | 4x720P/960P/1080P |
| Switch | Embedded,Centralized Power Supply |
| HDMI Output | 1 CHHDMI Resolution:1920x1080P/60Hz |
| VGA Output | 1 CH VGA Resolution:1920x1080P/60Hz |
| Video Compression | H.264 |
| Recording /Playback | 4*720P Playback |
| 4*960P Playback |
| 1*1080P Playback |
| Video Resolution | 720P,960P,1080P Recording |
| Frame Rate | PAL: 25 fps;NTSC :30 fps |
| Video Bitrate | 256 Kbps -- 4.0 Mbps |
| Stream Type | Audio/Video, Variable Rate(VBR) , Constant Bit Rate(CBR) |
| Dul-Stream | Support |
| Audio Compression | G.711 |
| Storage Type | 1 * SATA Interface |
| Storage Capacity | Max 4TB |
| Backup | USB Backup & Internet Backup , Support FTP 4 upload |
| Network Interface | 5*RJ45 100M Internet Interface |
| USB Interface | 2 * USB2.0 Interface(Support Upgrade, Backup, Mouse) |
| PTZ | 1 * RS485 Interface |
| Network cable | 4*18 meters |
| Temperature | -10°~55° |
| Operation System | Embedded Linux Operation System |
| Soft Power-Off | Not Support |
| Device Control | Remote Control & Mouse |
| Power Input | DC15 V / 5A |
Main Features:
-100% brand new and high quality
-Easy installation and maintenance
-Modernized design with high quality
-Excellent reliability and high stability
Payment Term:
Bank Transfer (T/T)
